4-head liquid filling production line

4-head liquid filling production line(图1)

Equipment parameters：

One：4-head filling machine

1: Voltage: 220V/50HZ

2: PLC control panel operation

3: The whole machine body is made of stainless steel material

4: Overall size: 2000 * 1000 * 1550mm

5: The width of the conveyor belt can be adjusted according to the width of the bottle body

6: Maximum filling capacity 5L

Two：Capping machine

1: PLC control panel

2: Voltage: 220V

3: Overall dimensions: 4000mm * 750mm * 1600mm

4: Material: stainless steel+lightweight aluminum profile

5: The rotary cover wheel is made of wear-resistant silicone

6: Electrical control, equipped with positioning device and speed regulating motor

Three：Labeling machine (positioning round bottle labeling machine)

1: PLC control panel operation, body made of stainless steel material

2: Voltage: 220V/50HZ

3: Adopting a single-sided and round bottle approach

4: Overall size: 1900 * 1500 * 1400

5: Adopting a three-bar adjustment mechanism and equipped with a labeling device

Product details:

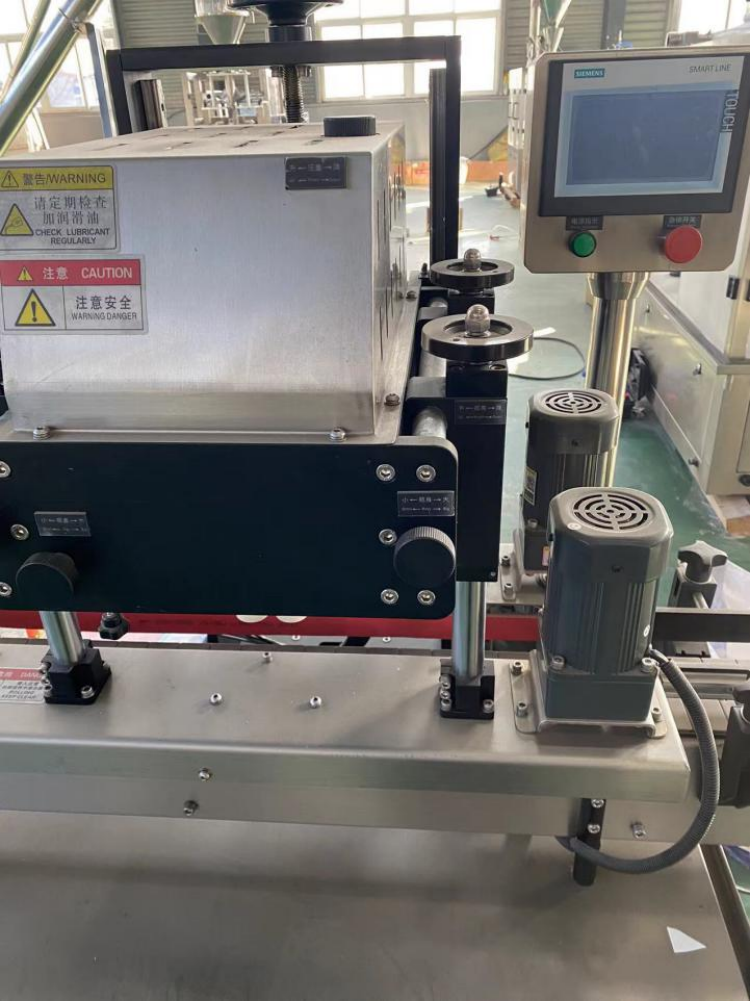

4-head liquid filling production line(图2)

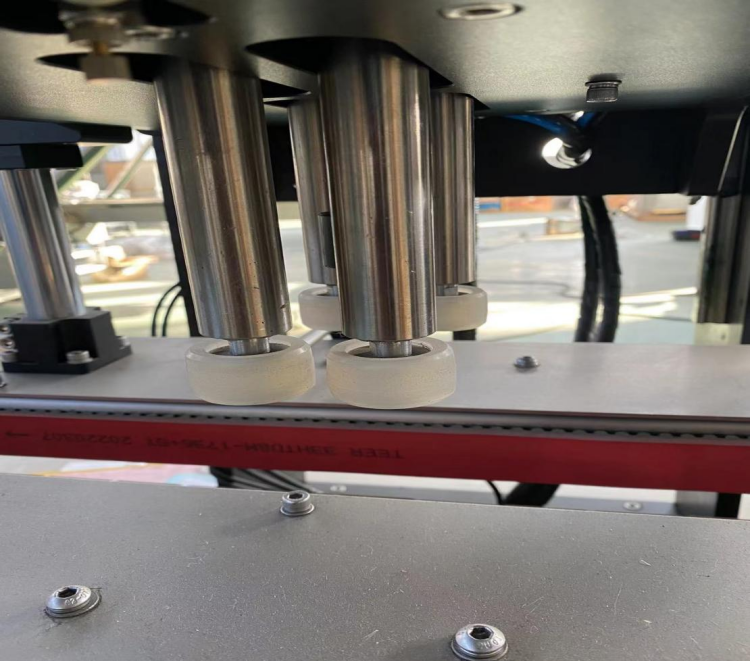

4-head liquid filling production line(图3)

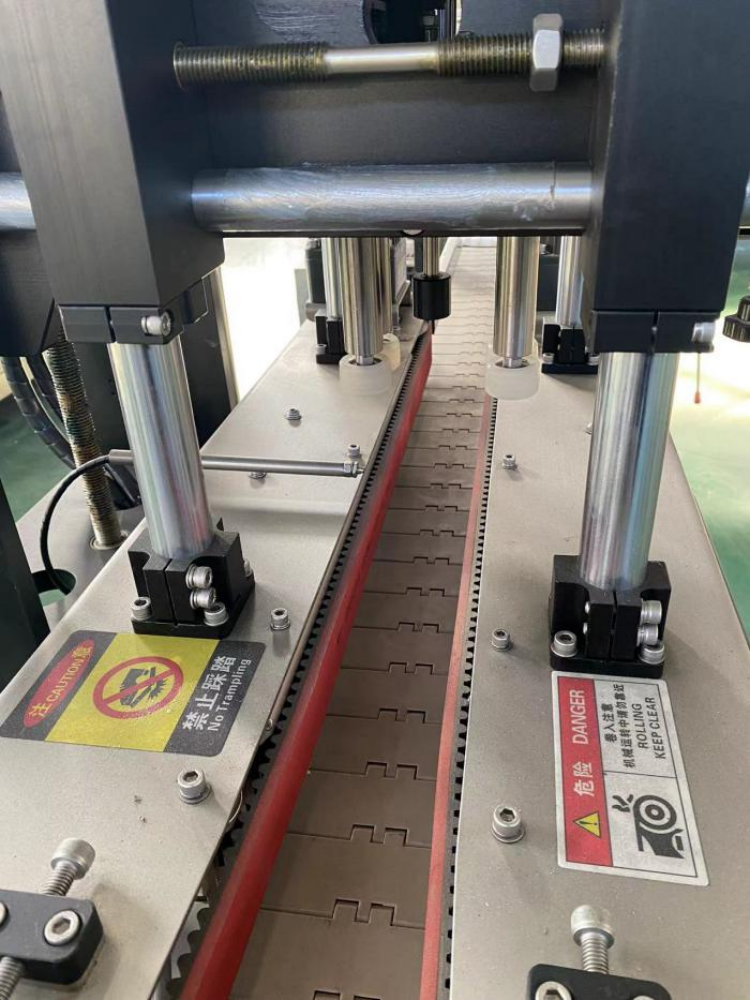

4-head liquid filling production line(图4)

Workshop photos:

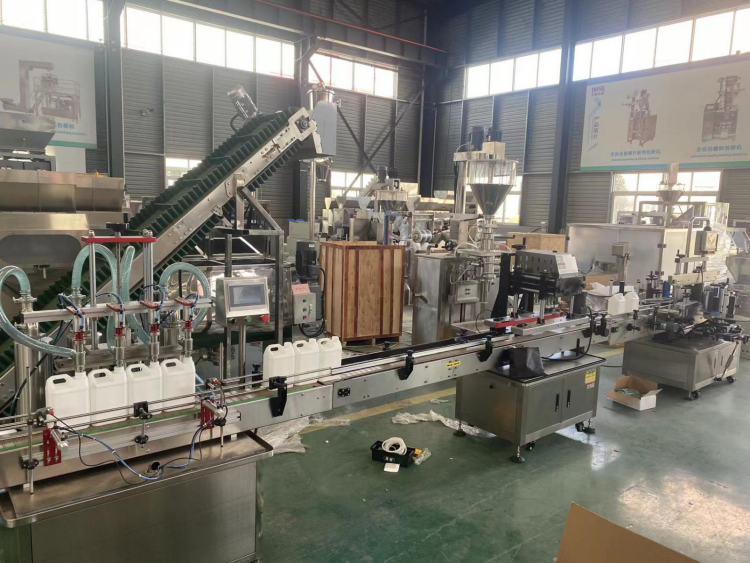

4-head liquid filling production line(图5)

Customer cooperation:

4-head liquid filling production line(图6)
